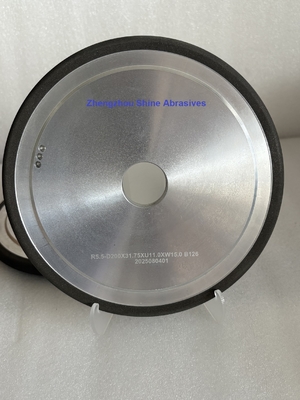

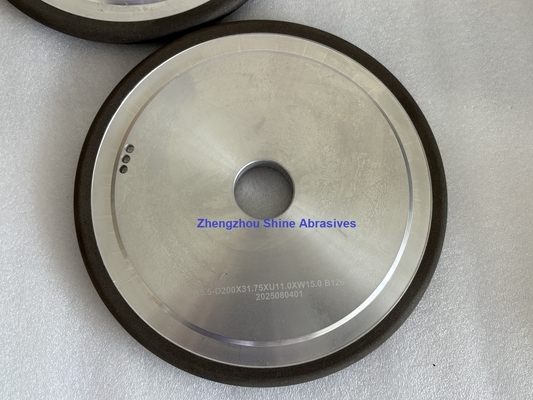

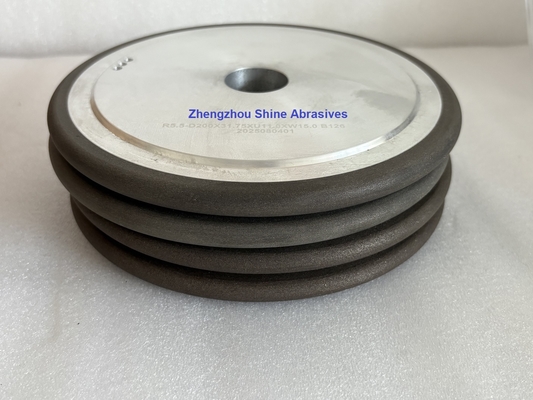

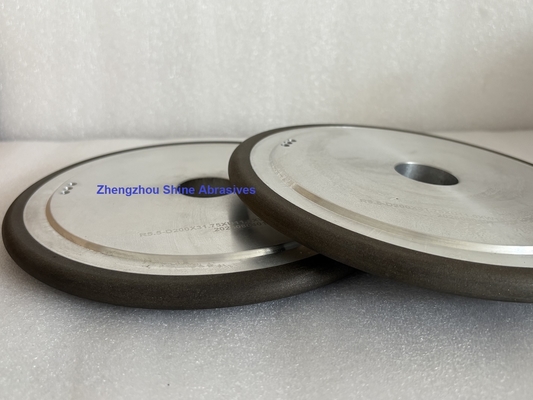

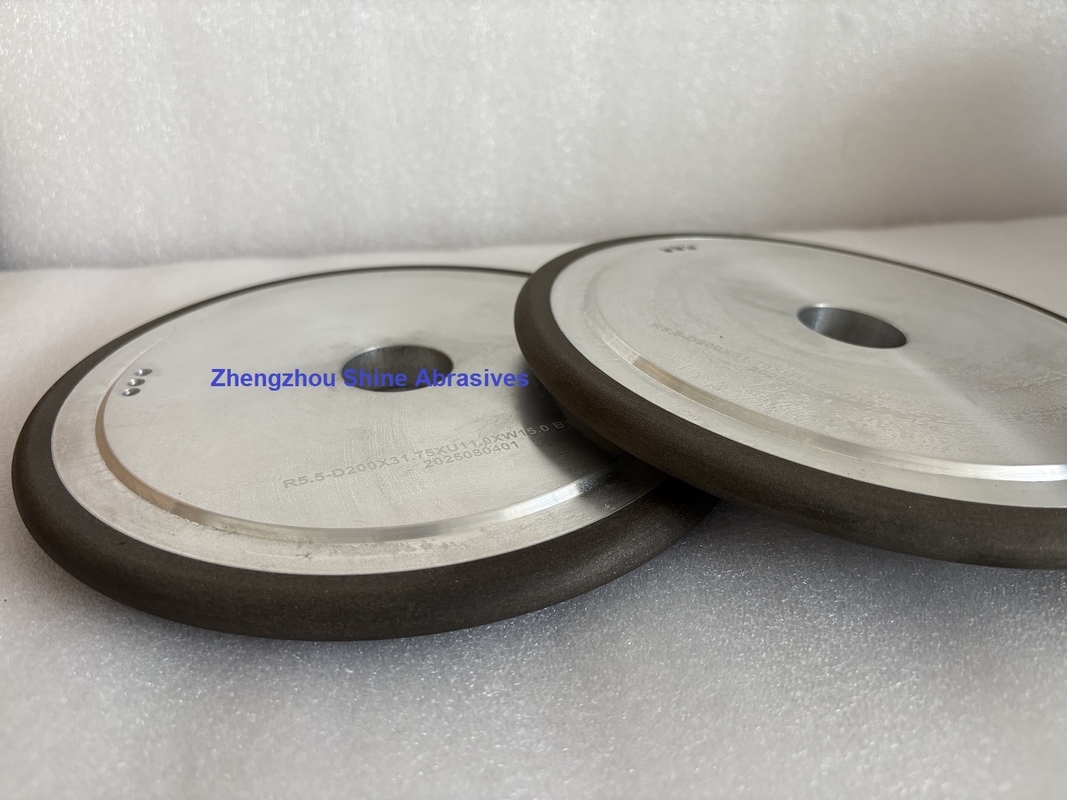

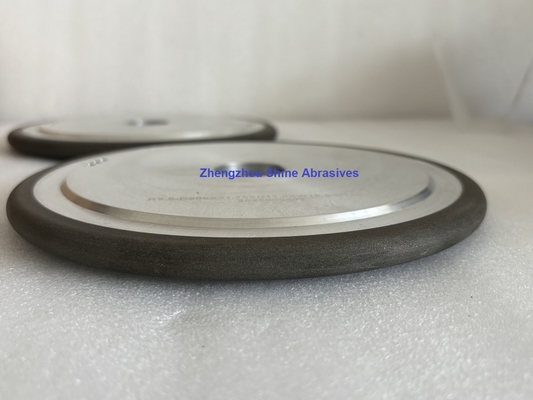

1F1 Resin Bond Diamond Wheel for Carbide Tools Profile Radius and Precision Grinding

1F1 resin bond diamond wheel for carbide tools profile radius grinding or sharpening

1F1 diamond wheels are a specific type of grinding wheel characterized by their unique shape and structure.

The "1F1" designation typically refers to a specific configuration in the designation system used for grinding wheels, denoting a particular profile and bonding method.

1F1 Diamond wheel drawing.

Wheel sizes form:

Others sizes are available per requested

1F1 Diamond wheel application

Key Features:
Shape and Design:

The 1F1 configuration usually features a flat surface with a specific profile that allows for efficient grinding and finishing operations.
Diamond Abrasives:

These wheels are embedded with diamond particles, providing exceptional hardness and cutting efficiency suitable for hard materials.
Bonding Type:

1F1 wheels can be made with various bonding types, including vitrified, resin, or metal bonds, depending on the application requirements.
Applications:
Precision Grinding:

Widely used for precision grinding of hard materials, including metals, ceramics, and composites.
Tool Sharpening:

Effective in sharpening cutting tools, such as drills, end mills, and inserts.
Surface Finishing:

Used in applications requiring high-quality surface finishes, particularly in the aerospace and automotive industries.
Glass and Stone Processing:

Suitable for grinding and finishing glass and stone materials.
Electronics Industry:

Utilized for processing semiconductor materials and other electronic components.
Advantages:
High Cutting Efficiency:

The diamond abrasives provide superior cutting capabilities, allowing for fast material removal.
Long Tool Life:

1F1 diamond wheels generally have a longer lifespan compared to conventional grinding wheels, reducing the need for frequent replacements.
Excellent Surface Finish:

Capable of achieving fine surface finishes, minimizing the need for additional finishing processes.
Reduced Heat Generation:

The design helps dissipate heat effectively, reducing the risk of thermal damage to the workpiece.
Versatility:

Suitable for a wide range of materials and applications, making them a versatile choice in various industries.
Consistent Performance:

Maintains consistent cutting action throughout its life, providing uniform results.
Conclusion
1F1 diamond wheels are effective tools for precision grinding and finishing applications. Their combination of high cutting efficiency, long tool life, and excellent surface finish makes them valuable in various industrial settings, from tool sharpening to processing hard materials. Regular maintenance and proper use will further enhance their performance and longevity.
